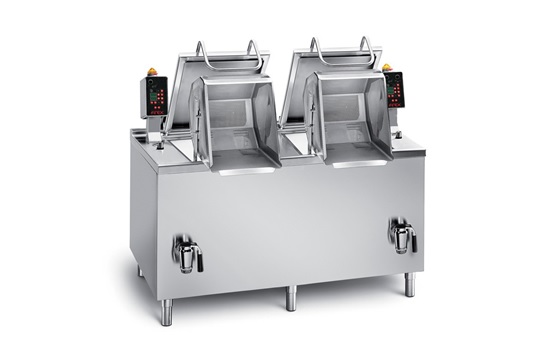

Batch fryer / เครื่องทอด

ชื่อผลิตภัณฑ์

Batch fryer / เครื่องทอด
หมวดหมู่

Fryer
รุ่น

Multicooker
ยี่ห้อ

Firex

Detail : CPMDE124

- Dimension L x P x H : 1200 x 900 x 900

- Vessel : 1

- Vessel capacity: 242 lt.

- Basket capacity: 24/30 kg.

- Gas power rating: 45 Kw

- Elect connection: 230/50 V/Hz AC – 1N + PE

- Steam Consumption: 60 Kg/h

- Elect connection: 230/50 V/Hz AC – 1N + PE

- Elect connection: 400/50 V/Hz 3N+PE AC

- Elect power rating: 27,5 Kw

Feature:

- Extremely easy to learn and to use.

- Difference models with 1 or 2 pans and independent basket.

- Guarantees fast and safe operating cycles, constant product quality.

- Control system to assure that the machine stops if without water.

- Steam is controlled by a pressure switch, safety value and pressure gauge, thermostatic value.

- Grants the automatic filling of the vessel and the maintaining of the necessary level of water for

continuous cycles of cooking.

- Standardly prepared to be connected with the PC for the HACCP control.

จุดเด่นของผลิตภัณฑ์

ผลิตภัณฑ์เด่น

Detail: - Arch size : 320x 200 mm. - Channel width : 30/ 42/ 50/ 62/ 77/ 102 mm. - Band width : 28/ 40/ 48/ 60/ 75/ 100 mm. - Voltage : 230V/115V - Frequency : 50 HZ/60HZ - Required air pressure : 6 bar - Air consumption : max.50l./min - Power : 500 watts - Work high : 955 - Height : 1270 - Width : 600 - Base depth : 500 - Depth : 500 - Total height : 1505 - Total width : 840 - Width of external reelholder : 220 - Bundless / min : 34 Feature: - Accurately, rapidly and reliably - With a clear massage - With all required product details - Economically and environmentally friendly - With safe, damage-free seal - Cleanly, odour and smoke free - With low energy costs - With lowest operational costs

Detail : - Power: 8 kW - Base heat temp: 20-200 Degree Celsius - Side wall temp: 50-130 Degree Celsius - Voltage: 380 V, 500 Hz - Mixing speed: 6-20 rpm - Tank diameter: 450 mm - Tank depth: 235 mm - Capacity: 30 liters - Dimension: W 880 x D 766 x H 970 mm Feature: - Heating by mean of armored elements in INCOLOY-800 alloy controlled by electronic board. - Temperature control by system with 2 probes (product/bottom) - Automatic mixing device with three arms and PEEK scrapers, complete with vertical blade according to the product to be processed. - Electronic control by means of multifunctional keyboard with touch screen 7 with easy and clear massages. - USB connection to update software and load cooking programs

Detail: - Simple to operate, easy to clean - Only seconds needed to change the cutting devices - 3 cutting devices available. - core 25 mm, peel 84 mm, max 150 mm, (Standard) - core 25 mm, peel 74 mm, max 150 mm, (Optional) - core 25 mm, peel 102 mm, max 150 mm, (Optional) - Footprint : 270x420 mm Feature: - Pineapple peeling and coring (Table top)

Specification: - weight: ca. 270 kg - voltage: 230V 50-60 Hz - power: 1.8 kW - power consumption: 7.8 A - knife rotation: 195-825 rpm - conveyer speed: min 1.72 rpm max 15.7 rpm - กำลังการผลิตขึ้นอยู่กับประเภทวัตถุดิบและขนาดที่ต้องการ

Detail: - Length : 2817 mm - Width : 1389 mm - Height : 1675 mm - Infeed / feeding height : 1232 mm - Discharge / outfeed height : 933 mm - Total power : 3.6 kW - Voltage : 3~400 VN/PE - Frequency : 50 Hz - Total volume : 606 l - Water discharge : 2x 2" - Fresh water connection : 2x 3/4 (GEKA) - Weight : 450 kg Feature: - Water attached to the wet product is partially eliminated through vibration and returns directly to the machine water circulation. This accelerates and simplifies product drying. - Depending on product, if the vibrating plate perforation has adequate hole sizes, vibration discharge can be used to product pre classification. This way, smaller particles that can fall through the holes are separated, allowing a better end product quality. Some sorting procedures could be simplified.

Detail: - Basket volume: 44 l - Infeed / feeding height : 583 mm - Speed : 325-1050 r/min - Voltage : 1~230 V N/PE, 50-60Hz, 2~230V N/PE, 50-60 Hz - Total power: 0,8 kW - Width x length x height : 644x954x985 mm - Weight: 160 kg. Feature: - Settings of individually adjustable spin speeds and freely adjustable spin times.

Detail: - Direction of cuts : Vertical - Diameter of circular blades (MM) : 200/300 - Maximum pprocessing height(MM) : 70/120 - Cutting width (processing width) (mm) : 400 - Infeed conveyor (mm) : 1170x490 - Output conveyor (mm) : 1170x490 - Cutting speed (m/min) : 18 (other cutting speeds upon request) - Electrial consumption (kW) : 1.5 - Electrical connection : 3 AC - 400V – 50 Hz(other voltages upon request) - Overall dimension BxHxT (mm) : 820x1300x2450 - Weight (kg) : 260 (with circular blade distance 8 mm and diameter of blades 20 mm) Feature: The Cortex CB495/5K SLICER 200 with 200 mm blades is the top-selling NOCK circular blade cutting machine with years. The machine is very often used with a blade distance of 12 – 18 mm to cut huge quantities of escalope or steaks where a throughput of more than 5 tons per hour can be achieved. Within minutes it can be re-equipped to cut strips with a second blade shaft.

Specifications Series F200 Series F222 Contents of the hopper: 250 ltrs Maximum filling power: 4.800 kg/h Maximum filling pressure: 40/50 bar Size of the filling chamber: 82g Number of wings (standard) : 14 Portioning range: 5-100 Contents of the hopper: 250 ltrs Max.filling power: 6.200 kg/h Filling pressure upto: 60 bar Contents of the filling chamber: 76 gr Number of rotor wings (standard) : 16 Portioning range: 5-10 Feature Series F200 & F222 ได้รับการออกแบบอย่างดี สามารถใช้งานได้ง่าย คงทน ยาวนาน สามารถอัดผลิตภัณฑ์เป็นแบบตรง แบบท่อน และตีเกลียวได้ เหมาะกับผลิตภัณฑ์ที่ต้องการความแม่นยำของน้ำหนักและใช้แรงอัดสูง หน้าจอแบบสัมผัส

Detail : - Capacity of the filling hopper: 25/90 liters - Maximum filling performance: 3.600 kg/h - Filling pressure up to max: 40 bar - Capacity of the chambers: 82 g - Number of wings: 14 - Voltage/Tension: 400V/50Hz - Total connected load max: 9,5 KW - Suction power of the vacuum pump: 21 cbm/h - Machine weight(net): 650 kg - Portioning speed max: 600 port/min Feature: - Suitable for the production of small calibers with high pressure. - Productions with attachments demanding high conveying capacity.

Detail : - Direction of cuts : Vertical - Diameter of circular blades (MM) : 200 - Maximum pprocessing height(MM) : 70(40) - Cutting width (processing width) (mm) : 300 - Infeed conveyor (mm) : 850x425 - Output conveyor (mm) : 650x425 (option) - Cutting speed (m/min) : 18 (other cutting speeds upon request) - Electrical consumption (kW) : 1.1 - Electrical connection : 3 AC - 400V – 50 Hz(other voltages upon request) - Overall dimension BxHxT (mm) : 700x1190x1720 - Weight (kg) : 220 (with circular blade distance 8 mm and diameter of blades 20 mm) , (with optional output conveyor) Feature: The Nock Compact Slicers with a 300 mm cutting width and maximum processing height of 70 mm are sufficient for some applications. They are particularly compact and reasonably-priced; especially if they are not equipped with an output conveyor.
