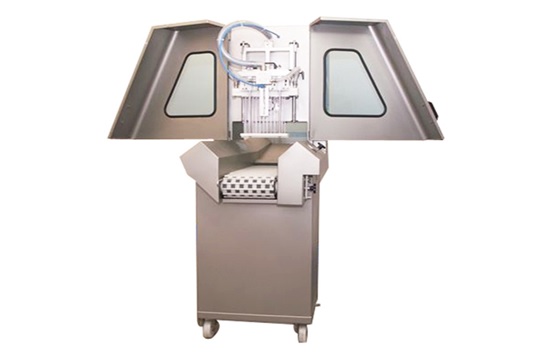

Injector / เครื่องฉีดน้ำเกลือ

- ยี่ห้อ : Dorit
- รุ่น :  PSM-24-4.0-1

Detail:
- Double needles: 24
- Number of needle heads: 1
- Needle diameter: 4.0 mm
- Strokes per minute: 32/64
- Belt advance, adjustable in 6 strokes 15-45 mm
- Max. product height: 200 mm
- Channel width: 270 mm
- Max. capacity per hour: 600-800 kg
- Max. injection rate in one pass (impeller pump IP-45): 35%
- Needle head drive: 0.63 kW
- Brine pump: 0.75 kW
- Dimensions (packed): 135 x 80 x 205 mm
- Approx. net weight: 204 kg.
- Approx. gross weight, with seaworthy crating: 296 kg.

Feature:
- Rugged, heavy-duty nickel-chromium-steel construction throughout.
- 24 continuously spraying, spring-loaded needles (12 double needles) 4.0 mm in four rows, for high injection rates with minimal brine pressure, replaceable without tools.
- Two patented pressure-compensation stripper blocks for continuous brine circulation to ensure accurate injection rates and minimize risk of plugged needles.
- Infinitely variable relief valve regulates brine pressure of the rust proof impeller pump IP-45, capacity 45 liters/min with separate drive motor 0.75kW, can be disassembled without tools.
- Glycerine manometer for pressure gauge display
- Suction filter on all intakes with quick-connection couplings and return-flow filter unit with replaceable filter insert.
- Gearmotor for stroke and belt drive, 0.63 kW
- Needle carrier speed: 32/64 strokes per minute
- No tools needed to remove conveyor unit, with rugged, food-safe plastic-link belt, 250 mm wide
- Belt advance: 15-45 mm, mechanically adjustable in 6 steps
- Passing width: 270 mm
- Passing height: 200 mm
- Standard voltage: 400V/50Hz/3Ph
